Description

Scope of Delivery:
- 1x BRENNENSTUHL power distributor plug 400V/16 A

Product Description:

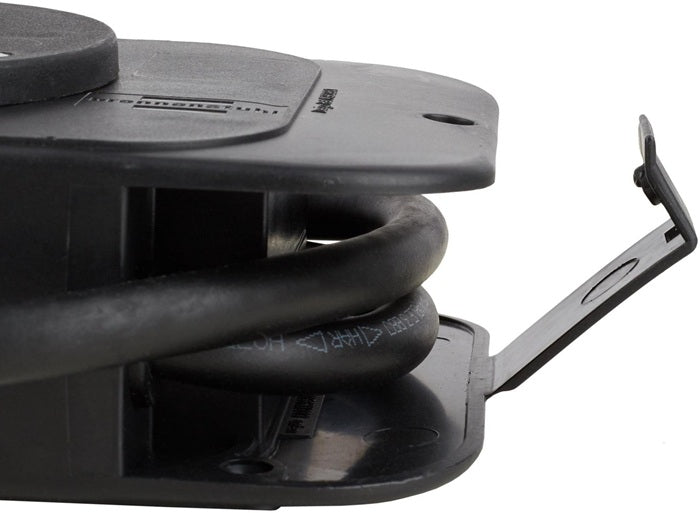

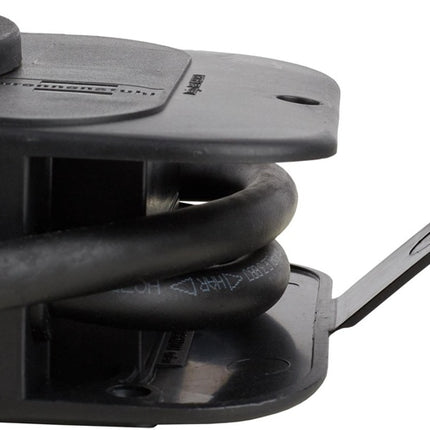

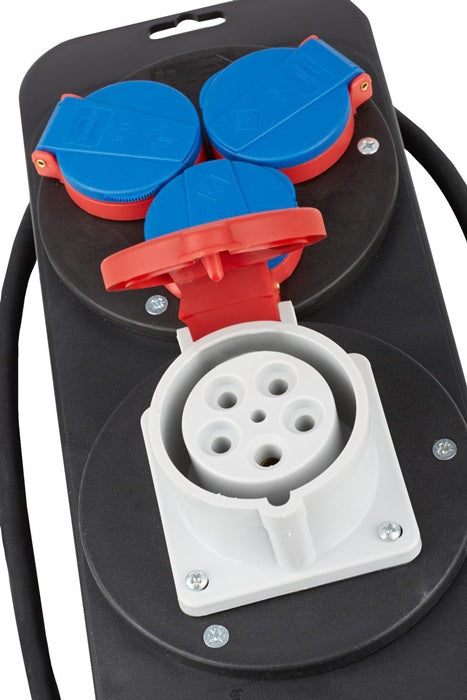

Housing made of highly break-proof plastic - suitable for wall mounting * Ideal for heavy-duty use * Practical retractor for storing the cable * Protection rating: IP44 * Sockets: 1x CEE 400V/16A, 3x 230V protective contact sockets (the three protective contact sockets are connected to three phases) * Cable quality: rubber-neoprene * Maximum current carrying capacity: 16 A

Technical Data:
- Number of cores: 5
- Core cross-section: 2.5mm2
- Total number of CEE sockets: 1
- Number of earthing contact sockets: 3
- Total number of sockets: 4
- Output voltage type: Alternating voltage (AC)
- Width: 13.5cm

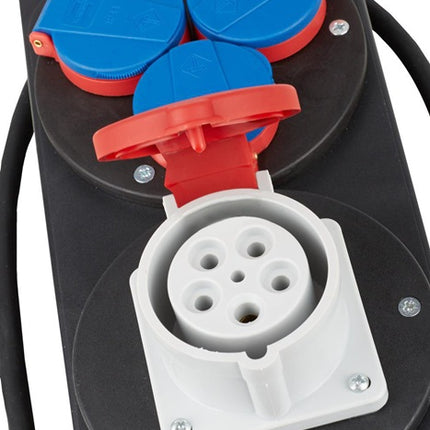

- CEE socket outlet - 16A: CEE 1x 16A 3P+N+PE (5p) 400V
- Input voltage type: Alternating voltage (AC)
- Power supply/ connection option: Supply cable with plug
- Colour: black
- Suitable for outdoor use: yes
- Suitable for ceiling mounting: yes
- Suitable for pendant suspension: yes
- Housing colour: black
- Weight: 1.495kg
- Handling: can be suspended
- Height: 11cm
- Cable designation: H07RN-F 5G2.5
- Cable entry: Top
- Cable entry into the housing: Bend protection sleeve
- Cable colour: black
- Length: 35cm
- Min. rated input voltage: 230V
- With CEE plug: yes
- With hinged lid/cover: yes
- Rated input voltage: 400V
- Protection class: I

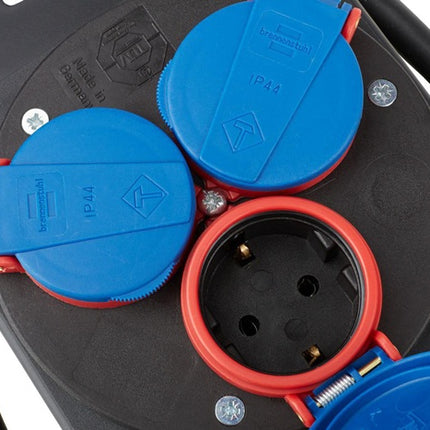

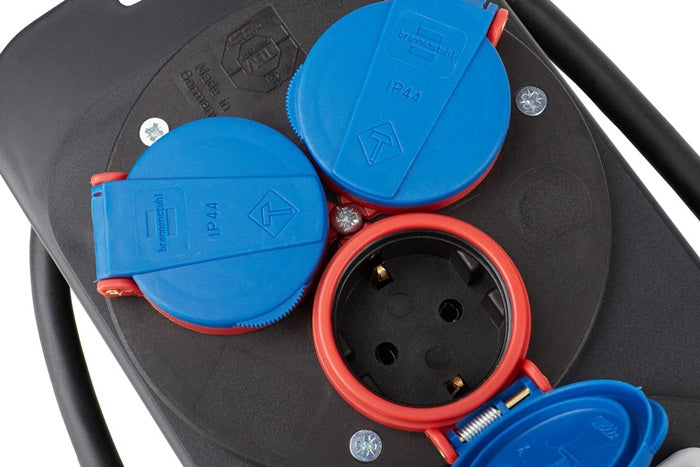

- Plug system socket: Type F (Schuko)

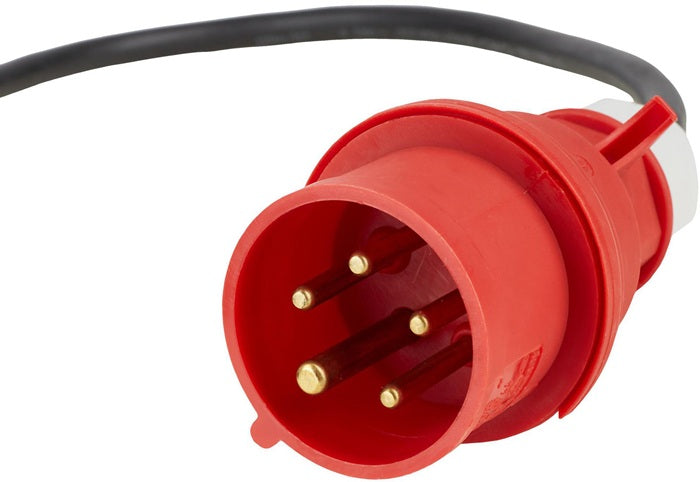

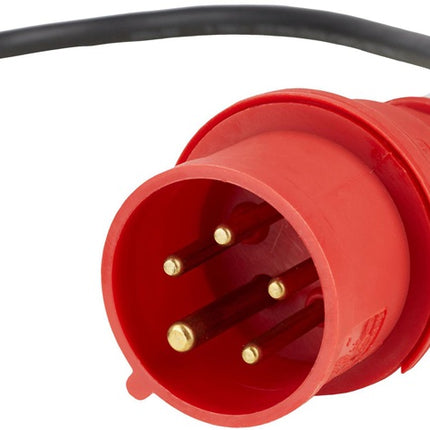

- Plug system Plug: CEE 16A 3P+N+PE (5p) 400V
- Housing material: Plastic
- Material type: PP
- Max. electrical load capacity: 6400W
- Max. Nominal input voltage: 400V
- Max. Current carrying capacity: 16A
- Input: 400V/16 A plug
- Connection cable: 2.5 mm
- Output: 1x CEE 400V/16A, 3x 230V
- Cable quality: H07RN-F 5G2.5
- Cable length: 2 m
- Protection class: IP44
- Brand: BRENNENSTUHLFor commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Read more

Product form

Brennenstuhl power distributor ( 8000808995 ) plug 400V/16 A 2.5 mm

    SKU: 143631  EAN: 4007123670178  Condition: New
    €73,53
    incl. VAT, plus shipping
