Description

Scope of Delivery:

- 1x Festool CSC SYS 50 EBI-Basic cordless circular table saw 168 mm ( 576820 )
- 1x hexagon socket spanner SW 6
- 1x circular saw blade WOOD FINE CUT HW 168x1.8x20 WD42
- 1x rip fence
- 1x push stick
- 1x spade wedge for concealed cuts
- 1x spade wedge with protective cover
- 1x chip bag
- 1x angle stop
- 1x Systainer
- without battery, without charger

Product Description:

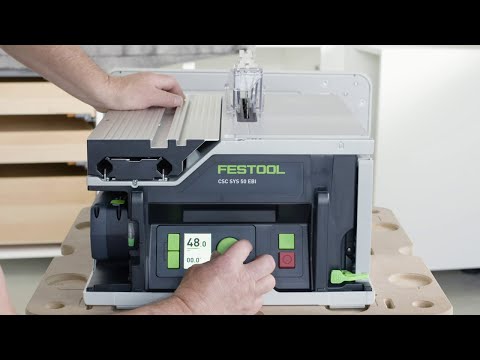

The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. Its external dimensions are extremely handy, but it is surprisingly versatile in use: with parallel cuts of up to 280 mm, a cross-cut width of up to 450 mm and angle cuts from -2° to 47°. The unique digital operation delivers extremely precise results down to a tenth of a millimetre. The 2x18 V dual battery system in combination with the brushless EC-TEC motor impresses with power and pulling force - you won't feel any difference to mains-powered machines. Together with the UG-CSC-SYS base frame, you have the perfect work table with you and transport from the vehicle to the work site is effortless. In short: sawing precision to go!

Technical Data:

- Manufacturer: Festool
- Battery voltage: 2 x 18 V
- Idle speed: 4 500 - 6 800 min-¹
- Saw blade mounting hole: 20 mm
- Tilt angle: -10 - +47 °
- Cutting height 0°: 0 - 48 mm
- Cutting height 45°: 0 - 34 mm
- Cutting height -10°: 21 - 32 mm
- Mitre angle: 0 - 70 °
- Parallel cutting width: 280 mm
- Table height: 280 mm
- Dimensions (L x W x H): 512 x 396 x 296 mm
- Dust extraction connection Ø: 27/36 mm
- Drive type: Battery
- Product weight: 15 kg
- Saws: A-weighted sound pressure level Lp: 85 dB(A)
- Saws: A-weighted sound power level Lw: 98 dB(A)
- Saws: EN series of standards: 62841
- Saws: Uncertainty (noise) K: 3 dB
- For commercial use, please observe the building regulations!

For commercial use, please observe the building regulations!

Specifications

• Hersteller: Festool
• Gewicht: 15000 g
• Antrieb: Akku
• Spannung: 36 V
• Länge: 512 mm
• Breite: 396 mm
• Höhe: 296 mm
• Max. Leerlaufdrehzahl: 6800 U/min
• Schalldruckpegel: 85 dB
• K-Wert Geräusch: 3 dB
• Schallleistungspegel: 98 dB
• Max. Sägeblatt-Ø: 168 mm
• Sägeblattbohrung: 20 mm
• Max. Schnitttiefe 45°: 34 mm
• Anschluss Staubabsaugung-Ø: 27 / 36 mm
• Schnittbreite: 45 cm
• Gehrung: 0 - 70 °
• Neigungswinkel: -10 - 47 °
• Schnitthöhe: 35 mm
• Max. Schnitttiefe 0°: 48 mm
• Max. Tischhöhe: 280 mm
• Schiebestock: Ja
