Description

Scope of Delivery:
- Torque multiplier DVV-40Z RS 4000 Nm 1 ″
- Supplied in sturdy transport case with foam insert, incl. factory test certificate and setting table

Product Description:

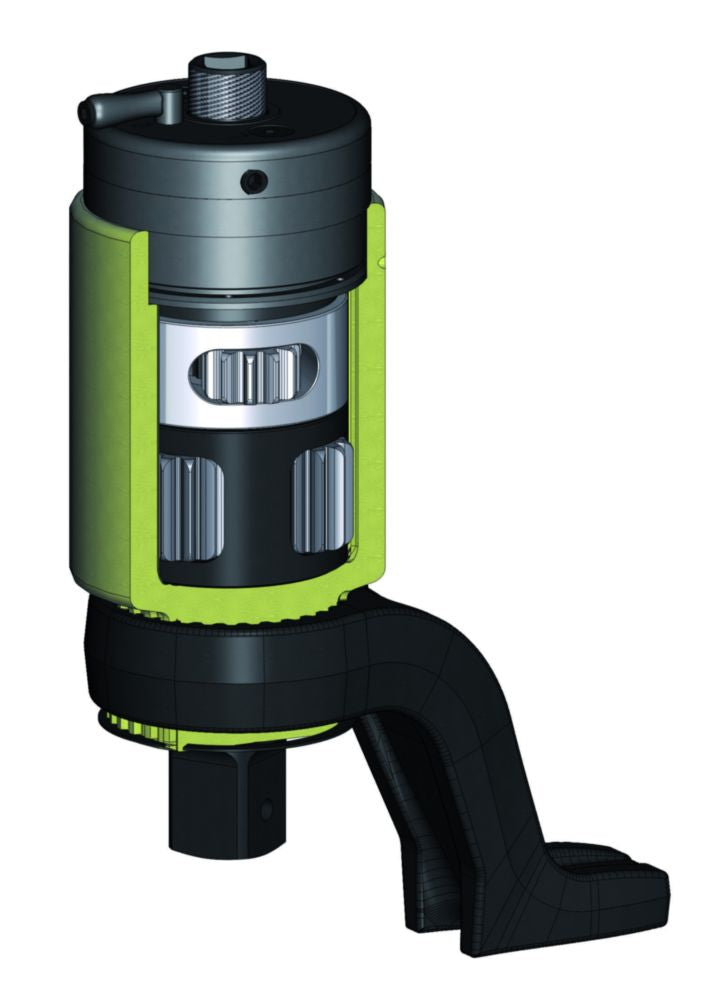

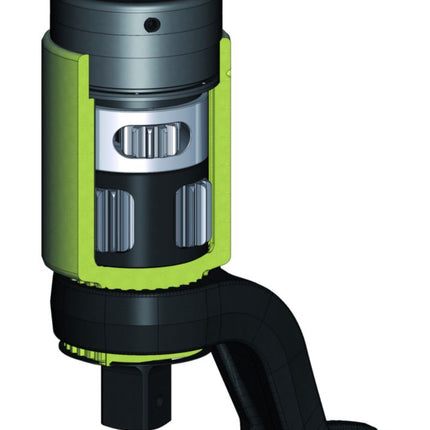

mechanical, manually operated torque multiplier for controlled screw tightening and for loosening screw connections - two-stage planetary gear - housing made of high-performance aluminium - model 4000 881 693 with backstop for more efficient and safe operation - with non-destructive "slipper" overload protection to protect the gearbox - right and left-handed - with cranked Z-shaped reaction arm made of forged chrome-vanadium steel - optionally retrofittable with straight L-shaped reaction arm with adjustable reaction square made of light metal with offset Z-shaped reaction arm made of forged chrome vanadium steel - can be optionally retrofitted with straight L-shaped reaction arm with adjustable reaction square made of light metal (4000 881 694 - not included in the scope of delivery) - accuracy: better than ± 3 % tolerance - can be operated with a torque spanner (not included in the scope of delivery) - square drive socket with hole for power screwdriver inserts with locking pin and ring

Technical Data:
- max. output lbf.ft: 2390lbf.ft
- Gear ratio: 1:16
- subject to inspection: yes

For commercial use, please observe the building regulations!

Product form

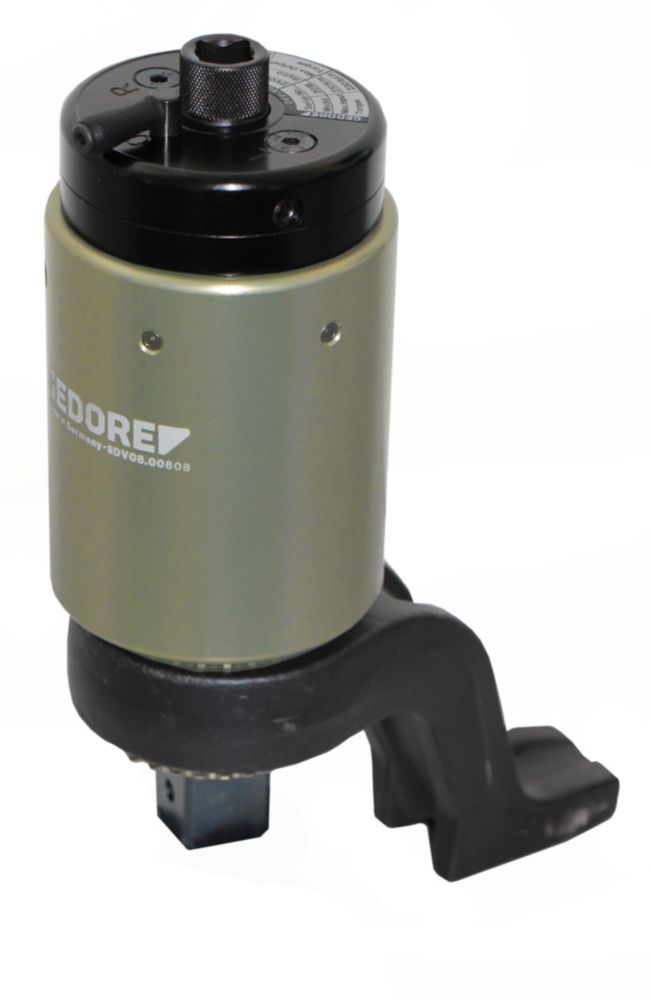

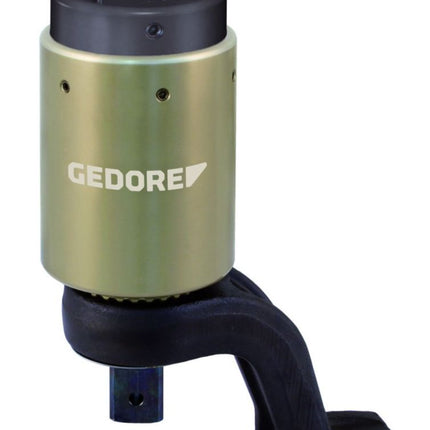

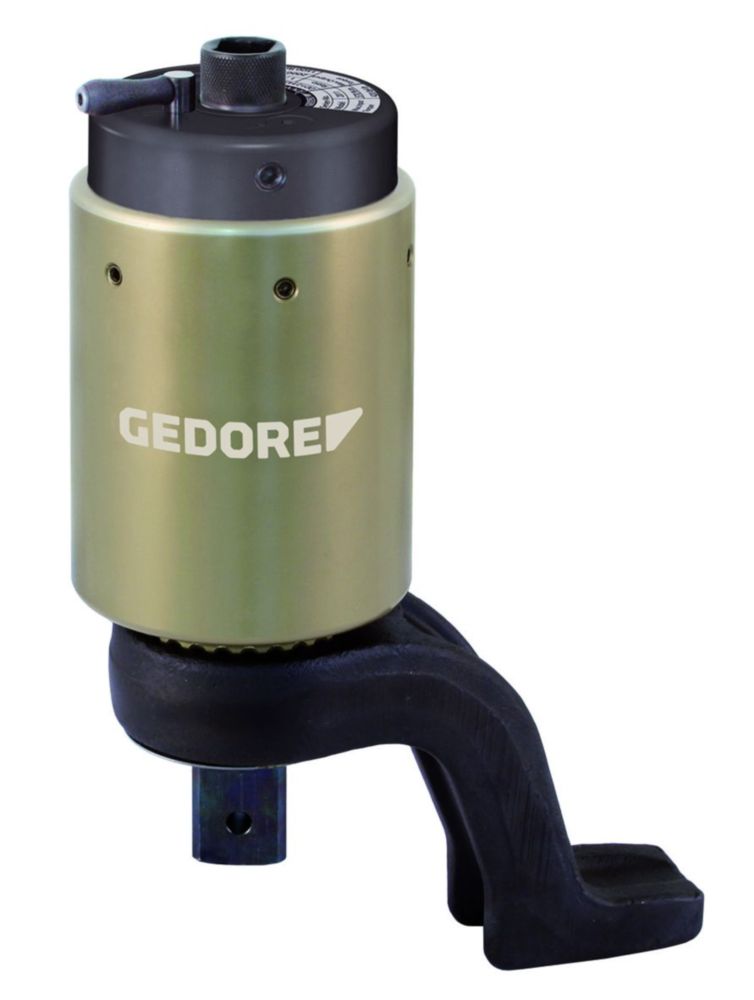

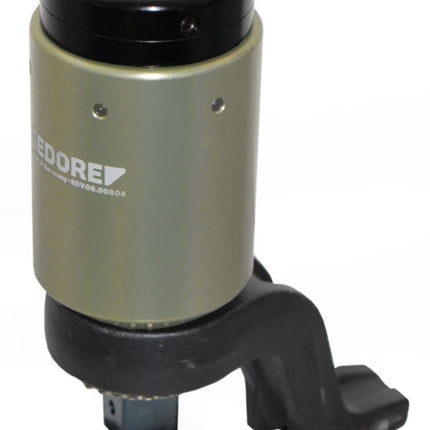

GEDORE torque multiplier DVV-40Z RS 4000 Nm 1 ″ ( 4000881693 )

    SKU: 72561  EAN: 4010886934302  Condition: New
    €3.109,60
    incl. VAT, plus shipping
