Description

Package contents:

- 400x HECO MULTI MONTI plus F Screw Anchors, 6.0 x 60mm

Product description:

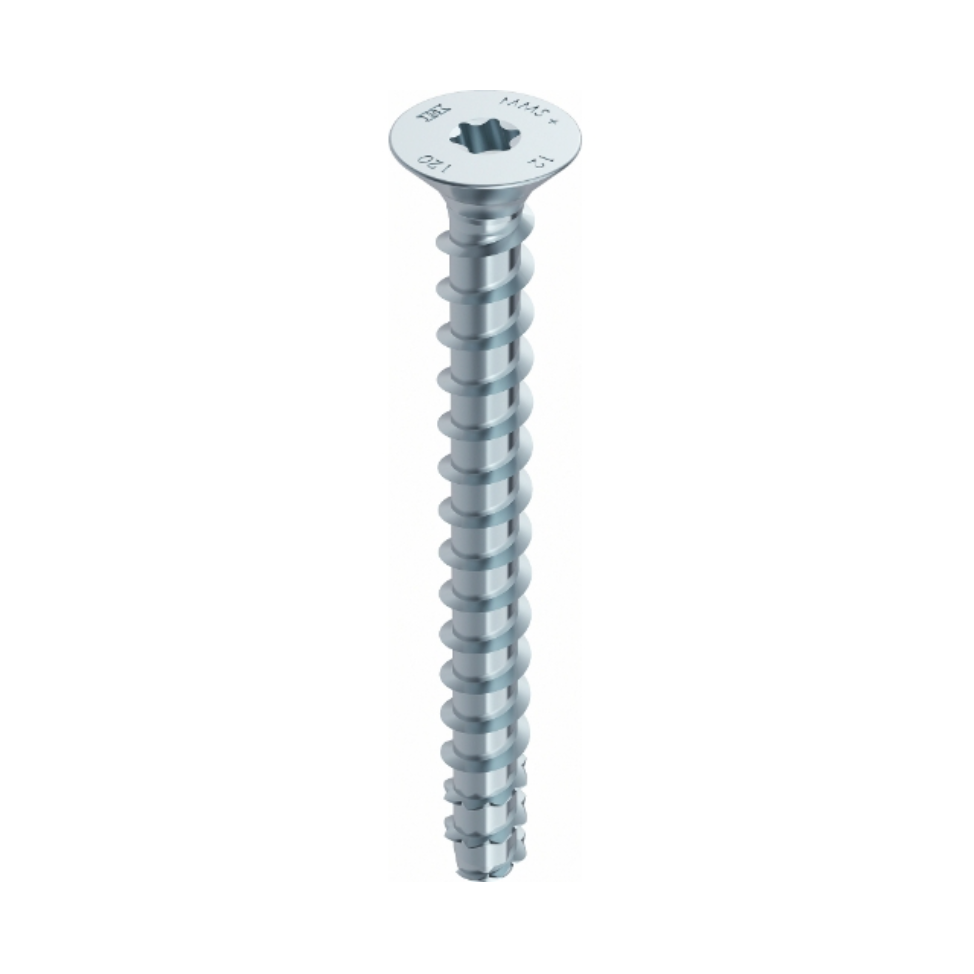

The MULTI MONTI plus screw anchor from HECO is an enhanced version of the MULTI MONTI concrete screw. Its main advantage is that it can be inserted directly into a pre-drilled hole without the need for wall plugs, and can be immediately loadable. Its functional point, with reinforced teeth, taps into the building material as it is being screwed in. This creates a positive locking connection, which is subsequently used for the anchoring. This system not only simplifies the assembly process, but also guarantees optimum safety for the user. The MULTI MONTI plus can be mounted close to the edge without a torque wrench. It can also be removed and reused.

Technical specifications:

Manufacturer: HECO
Manufacturer's number: 48497
Manufacturer's designation: MULTI MONTI plus F
Clamping strength, tfix1: 15 mm
Clamping strength, tfix2: 25 mm

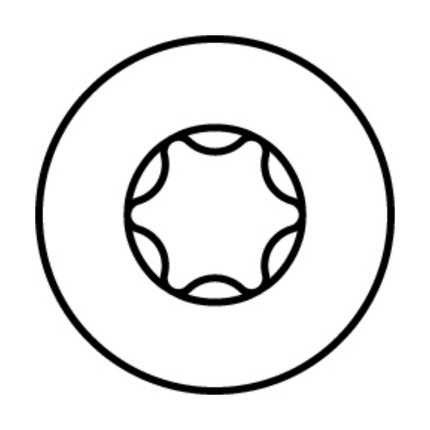

Drive size: T30

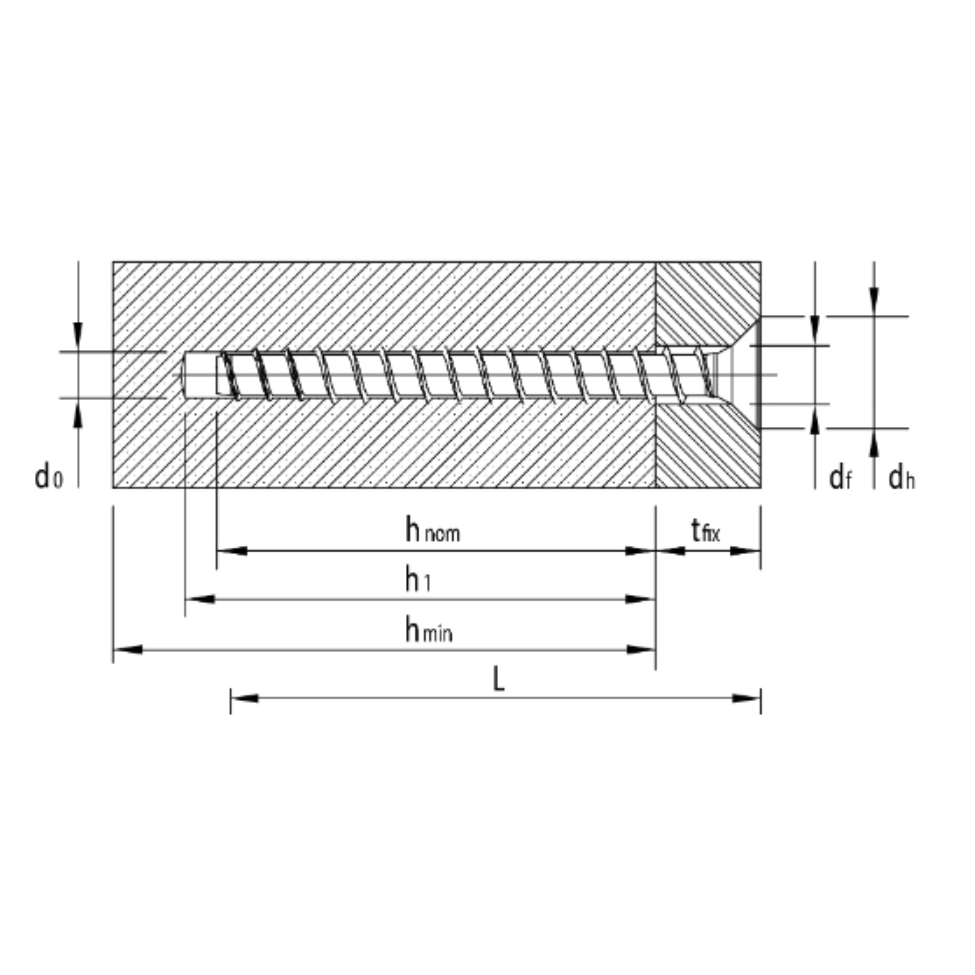

Drill diameter, d0: 5.0 mm
Drill hole depth, h1: 50 mm
Drill hole depth, h2: 40 mm
Diameter of clearance hole in the fixture, df: 7 mm
Embedment, hnom1: 45 mm
Embedment, hnom2: 35 mm
Thread length, lg: 54 mm
Head diameter, dk: 11.5 mm
Recommended max. power output of the impact screw driver, Tmax1: 100 Nm
Recommended max. power output of the impact screw driver, Tmax2: 75 Nm
Minimal thickness of concrete member, hmin: 100 mm
Min. edge distance, cmin: 30 mm
Diameter, d: 6.0 mm
Length, l: 60 mm
Head form: countersunk head
Drive: T-Drive
Material: Carbon steel
Surface: Blue zinc plated, A2K

Product form

HECO MULTI MONTI plus F Screw Anchor, 6.0 x 60 mm, Concrete screws, Countersunk head, Blue zinc-plated, A2K, 400 pcs. (4x 48497)

SKU: 26139 EAN: 4064677024130
    €94,94
    incl. VAT, plus shipping
