Description

Package contents:

- 25x HECO MULTI MONTI plus SS Screws Anchors 12.0x80mm

Product description:

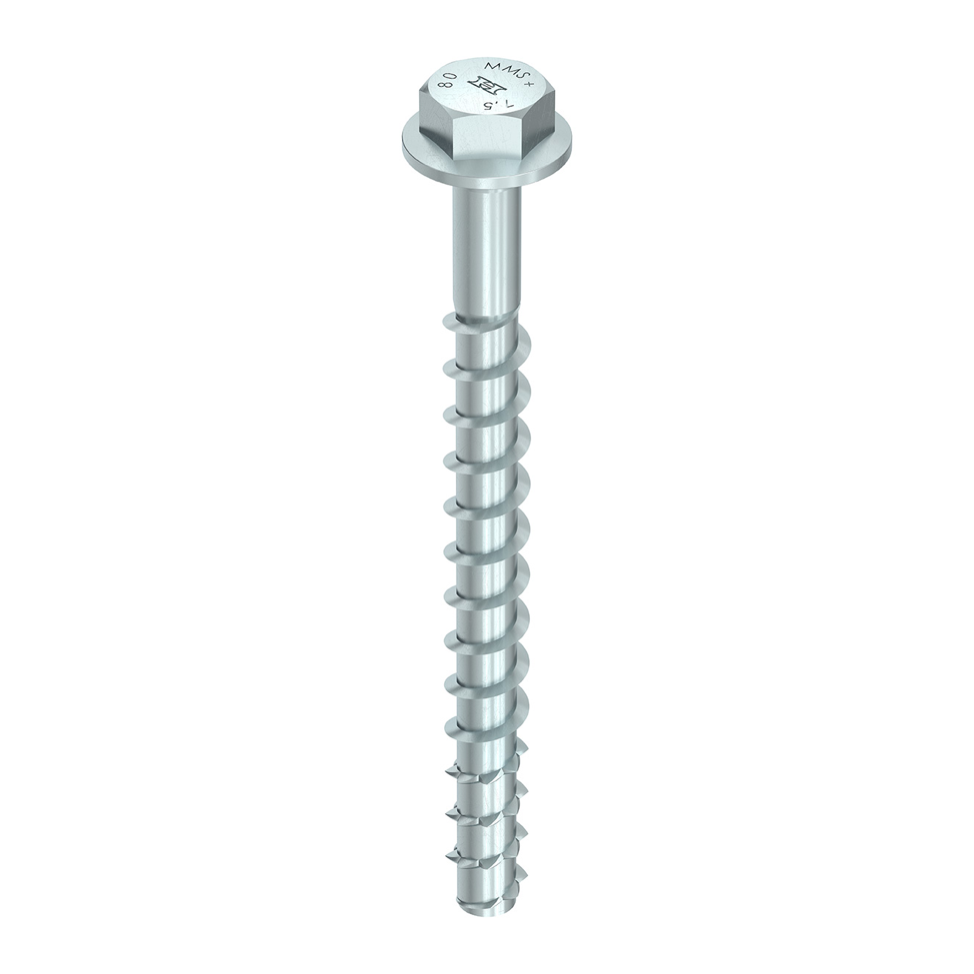

The HECO MULTI-MONTI-plus is a self-tapping concrete screw. It has a hexagonal head with combined washer and MMS+ recess. It has a full thread with reduced play at the drill hole recess to meet the most demanding requirements and economical constructions. What's more, the ideal interaction between core and thread geometry ensures easy screwing and high load capacities. The MMS-plus screw is also wear-resistant, thanks to its reinforced teeth at the tip, so it can be used for a wide range of temporary fixings. It is settable by means of power-tools and immediately loadbearing. It is suitable, for example, for mounting posts, pipes, adjusting props, securing cable ducts, fixing in the field and securing wall brackets and consoles.

Technical specifications:

Manufacturer: HECO
Manufacturer's Designation: MULTI MONTI plus SS
Manufacturer’s Number: 48407
Product Type: Concrete Screw
Recess: Hexagonal Head
Size of Recess: SW-15

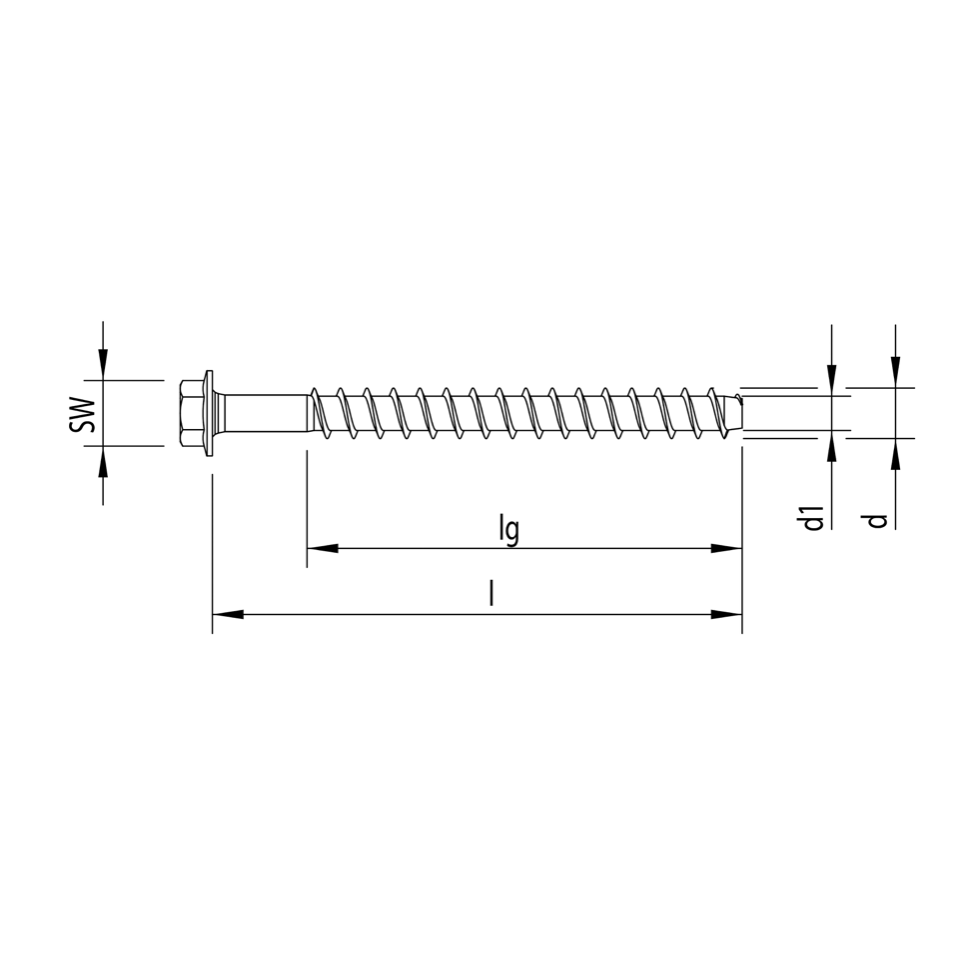

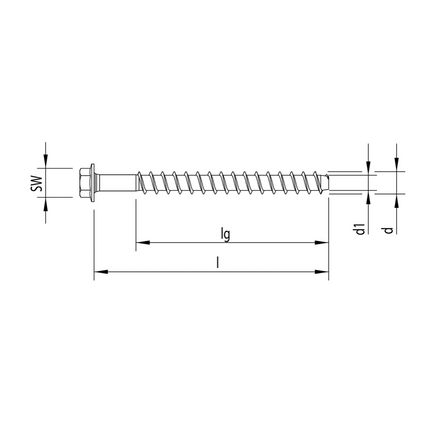

Diameter, d: 12mm
Length, l: 80mm
Thread Length, lg: 75mm
Head Diameter, dk: 22mm
Drill Diameter, d0: 10mm
Maximum Clamping Strength, tfix1 Standard: 5mm
Embedment Depth, hnom1 Standard: 75mm
Drill Hole Depth, Standard h1: 85mm
Diameter of Clearance Hole in the Fixture, df: 14,5mm
Minimum Edge Distance, cmin: 40mm
Thickness of Concrete Member, hmin1: 125mm
Max. Recommended Power Output of the Impact Screw Driver, Tmax1: 250Nm
Material: Carbon Steel
Surface: Blue Zinc Plated, A2K

Product form

HECO MULTI MONTI plus SS Screw Anchor 12.0x80mm, Concrete Screw, Hexagonal Head, Blue Zinc Plated, A2K, 25 pcs. (48407)

    SKU: 27145  EAN: 4019787484077  Condition: New
    €29,60
    incl. VAT, plus shipping
