Description

Package contents:

- 25x HECO MULTI MONTI plus SS Screw Anchors 6.0x60mm

Product description:

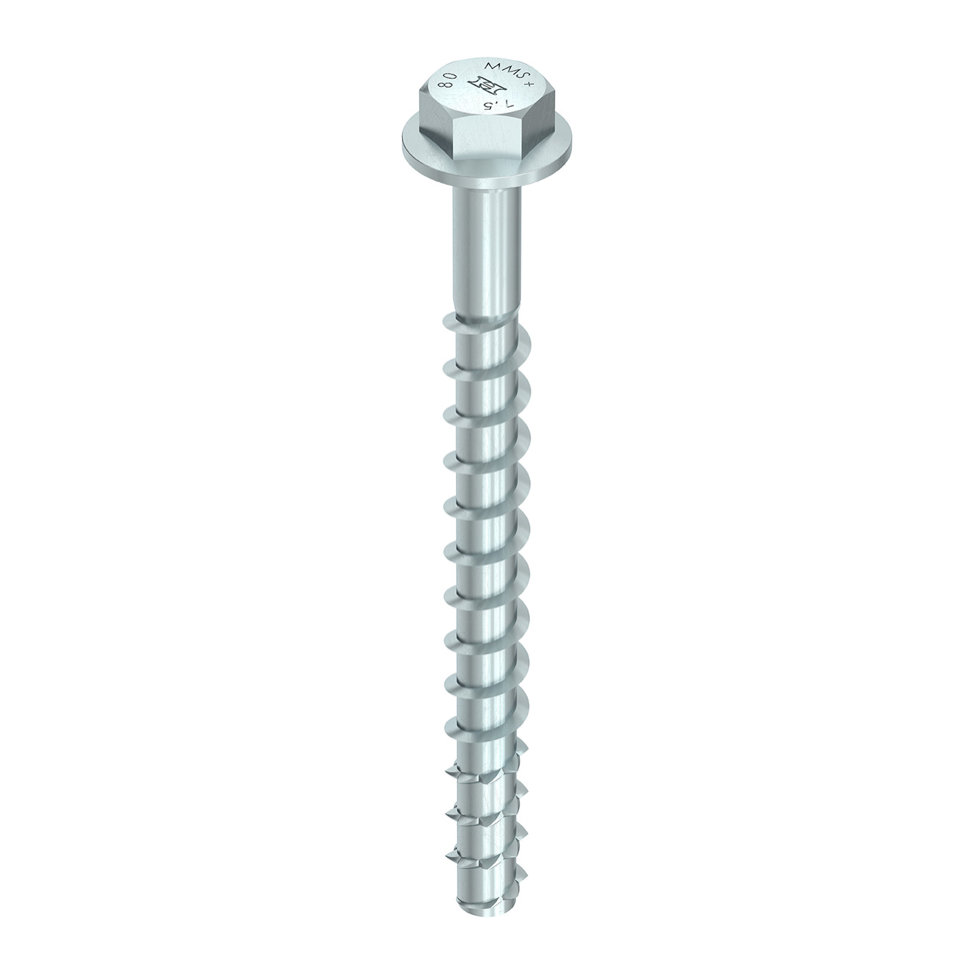

The HECO MULTI-MONTI-plus is a self-tapping concrete screw. It has a hexagonal head with combined washer and MMS+ recess. It has a full thread with reduced play at the drill hole recess to meet the most demanding requirements and economical constructions. What's more, the ideal interaction between core and thread geometry ensures easy screwing and high load capacities. The MMS-plus screw is also wear-resistant, thanks to its reinforced teeth at the tip, so it can be used for a wide range of temporary fixings. It is settable by means of power-tools and immediately loadbearing. It is suitable, for example, for mounting posts, pipes, adjusting props, securing cable ducts, fixing in the field and securing wall brackets and consoles.

Technical specifications:

Manufacturer: HECO
Manufacturer's Designation: MULTI MONTI plus SS
Manufacturer’s Number: 48385
Product Type: Concrete Screw
Recess: Hexagonal Head

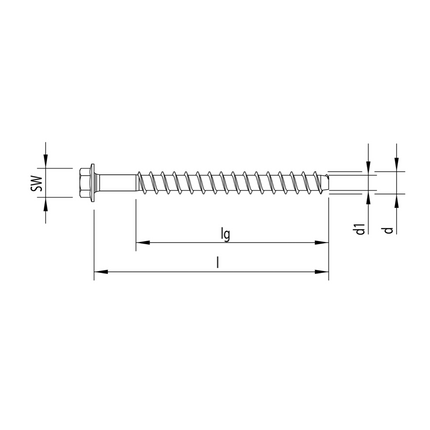

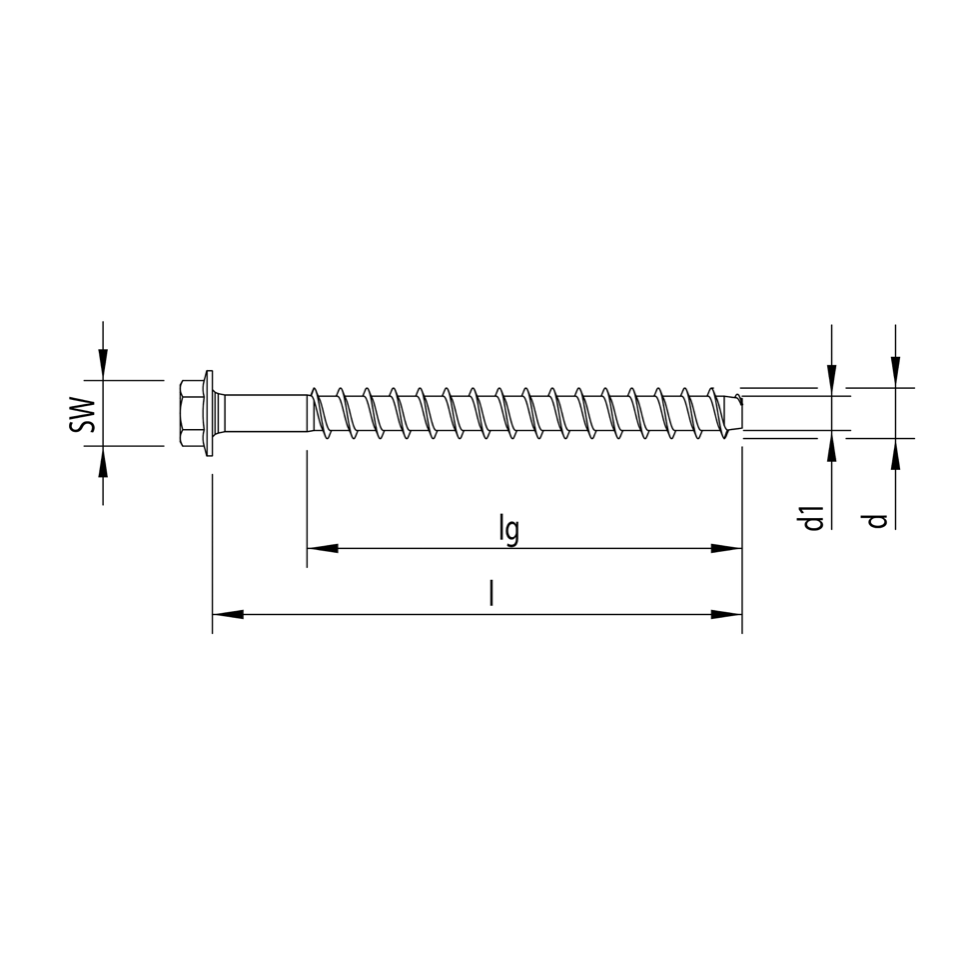

Diameter, d: 6.0mm
Length, l: 60mm
Thread Length, lg: 57mm
Head Diameter, dk: 11.0mm
Size of Recess: SW-8
Drill Diameter, d0: 5.0mm
Maximum Clamping Strength, tfix1 Standard: 15mm
Maximum Clamping Strength, tfix2 Standard: 25mm
Embedment Depth, hnom1 Standard: 45mm
Embedment Depth, hnom2 Standard: 35mm
Drill Hole Depth, Standard h1: 50mm
Drill Hole Depth, Standard h2: 40mm
Diameter of Clearance Hole in the Fixture, df: 7mm
Minimum Edge Distance, cmin: 30mm
Thickness of Concrete Member, hmin: 100mm
Max. Recommended Power Output of the Impact Screw Driver, Tmax1: 75Nm
Material: Carbon steel
Surface: Blue Zinc Plated, A2K



Product form

HECO MULTI MONTI plus SS Screw Anchor 6.0x60mm, Concrete Screw, Hexagon Head, Blue Zinc Plated, A2K, 100 pcs. (48385)

SKU: 27143 EAN: 4019787483858
    €24,59
    incl. VAT, plus shipping
