Description
Scope of Delivery:

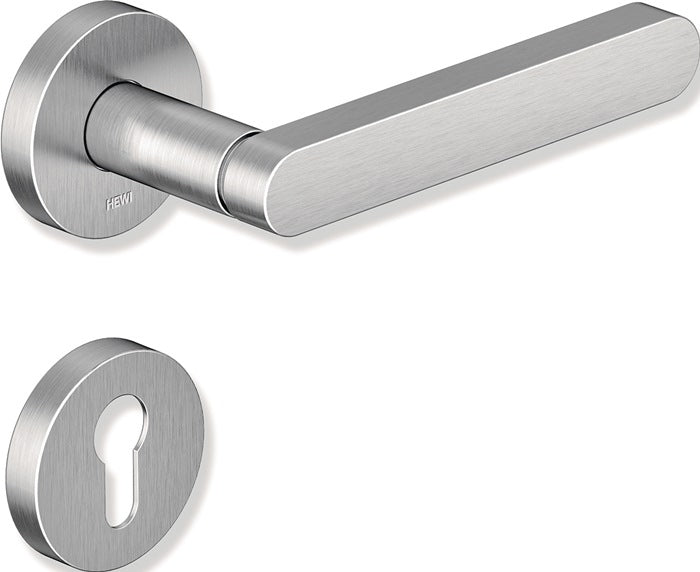

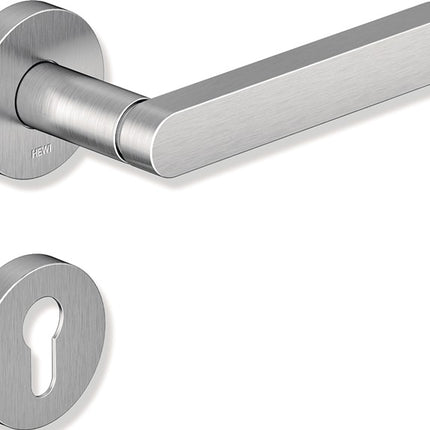

- 1x HEWI escutcheon set 270XAH01.130 stainless steel
Product Description:

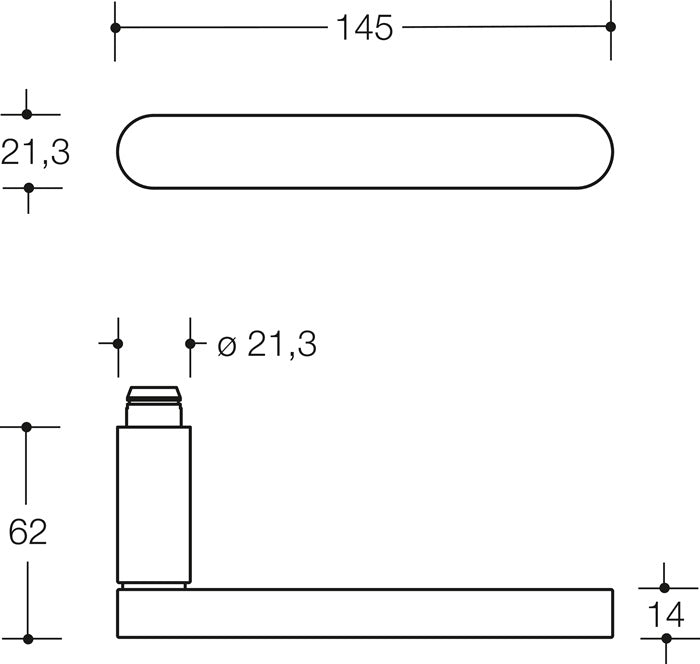

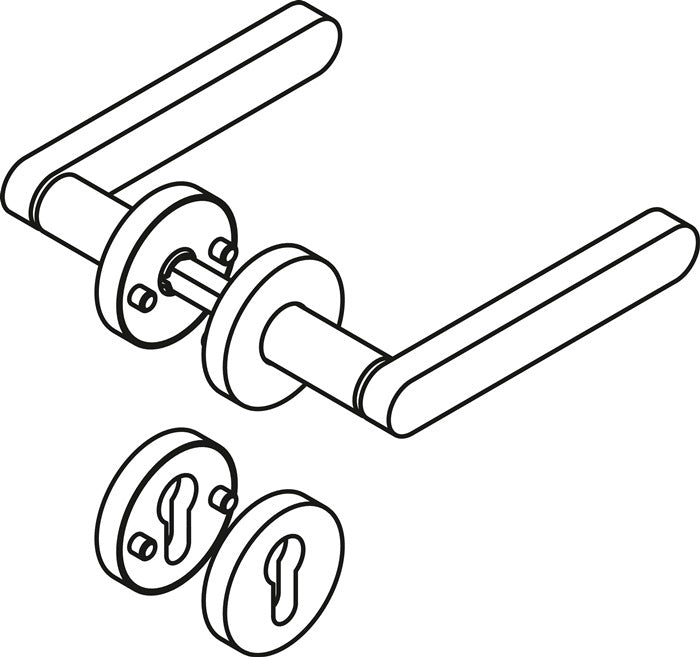

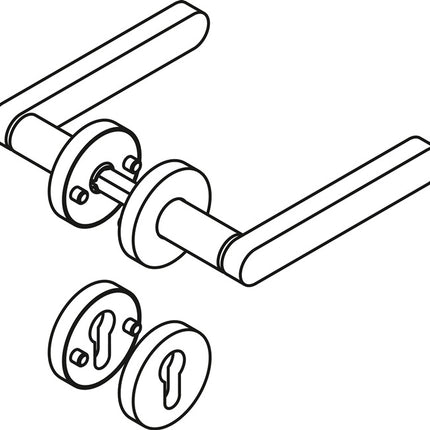

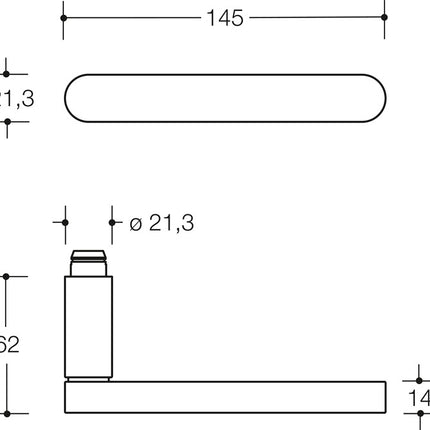

in H technology with roses to DIN 18255 and DIN EN 1906 made of stainless steel, satin finish, consisting of: Lever handle model 271X... in L-shape made of stainless steel (1.4301), lug diameter 21.3 mm, with lug guide and locking groove, with grub screw M5 as additional fixing of the lever handle with the square spindle for optimum force transmission into the door leaf. Installation by simply snapping the lever handle into the pre-mounted bottom parts on the door. The latching mechanism can be released again using a disassembly spanner. Rosettes 305.21X... and 306.23X..., substructure 305.21X... in plastic/steel composite construction with black zinc/nickel surface for optimum corrosion protection, integrated hold-open module with spring support, can be used DIN left and DIN right, to support the lock for a longer service life. Fixed pivot bearing of the lever handle with automatically engaging all-round locking and 5 mm bearing point as a maintenance-free plain bearing with elastic compensation area to eliminate possible installation inaccuracies. Concealed, loosening-proof screw fitting with M5 stainless steel screw and sleeve screw combination as well as support plugs recessed into the door leaf. Rose cover cap, round, made of stainless steel (1.4301), diameter 55 mm, 10.5 mm high, 1.5 mm wall thickness. Designed and tested for the contract sector, usage category to DIN EN 1906 - Class 4 fitting, with square spindle 8 mm, for door thickness 38-48 mm - lever handle length 150 mm - Zimmergarnitur
Technical Data:
- Fastening system: H technology
For commercial use, please observe the building regulations!
